Biaxial electro-hydraulic servo fatigue test system for automobile seat
The system adopts the structure of horizontal and vertical compound vibration, combined with the actual simulation of the ride state, set independent drive mechanism each other. According to the need, the vibration of the seat can be realized in order to obtain the fatigue parameters of the single direction seat, can also be driven to carry out complex external vibration, to obtain the horizontal and vertical vibration fatigue parameters.
The test system is equipped with adjustable bracket, moving beam, loading device with adjustable loading direction, test base capable of being moved laterally and T type trough test bed. Universal type. Flexible configuration, can be tested with a complex shape of the test pieces, or otherwise configured as a multi axis test system.
Measurement and control system using AOWEI's LeadTestB full digital servo controller own R & D, full closed loop computer real-time control.

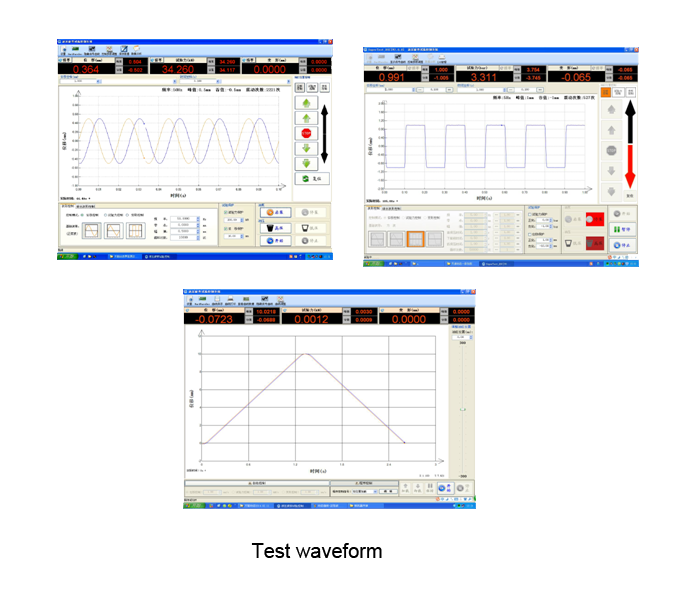

Test software using AOWEI's Test_DSC3.0 dynamic test software own R & D.
Solutions
-
Auto and rail
- Automotive damper test system
- Electro-hydraulic servo rail fastener static and dynamic test system
- Electro-hydraulic servo clutch driven disc assembly torsional fatigue test bench
- Biaxial electro-hydraulic servo fatigue test system for automobile seat
- Motor-servo seat headrest service life test bench
- Auto flattening test system
-
Intelligent control system
Position:Home > Solutions > Auto and rail
Product Name：Biaxial electro-hydraulic servo fatigue test system for automobile seat
Applications:
This test system is used to simulate the life of the seat in the vertical and horizontal direction. At the same time can be multi channel test, measurement and control of real time data, the test results directly affect the car seat service life and safety factor is essential to ensure the safety running of test vehicle.
Auto parts enterprises
Automobile manufacturing enterprise
Automobile Research Institute
